EZ Tube Connect Modular Displays Non-Backlit


LEGEND


  • IMAGES

  • TEMPLATE

  • SPECSHEET

  • INSTRUCTIONS

  • VIDEO

*Please install the Zip Viewer Apps for viewing zip files on Apple devices.* Click here to download


EZ Tube Connect Configurations


EZ TUBE CONNECT 10FT KIT A SINGLE-SIDED GRAPHIC PACKAGE
  • Product Code: EZCNCT-10KIT-A-2X5X2G1
  • Display Size: 120″W x 90″H x 18.75″D
  • Template Size: 2ft. 24″W x 88″H, 5ft. 60″W x 88″H, Medium Hard Case 62.375″W x 32.25″H
  • Product Weight: 60 lbs (frames and graphics)

EZ Tube Connect 10FT Kit A Double-sided Graphic Package
  • Product Code: EZCNCT-10KIT-A-2X5X2G2
  • Display Size: 120″W x 90″H x 18.75″D
  • Template Size: 2ft. 24″W x 88″H, 5ft. 60″W x 88″H, Medium Hard Case 62.375″W x 32.25″H
  • Product Weight:60 lbs (frames and graphics)

EZ TUBE CONNECT 10FT KIT B SINGLE-SIDED GRAPHIC PACKAGE
  • Product Code: EZCNCT-10KIT-B-3X4X3G1
  • Display Size: 120″W x 90″H x 18.75″D
  • Template Size: (Side) 2ft. 24″W x 88″H, (Center) 5ft. 60″W x 88″H, (Medium Hard Case) 62.375″W x 32.25″H
  • Product Weight:62 lbs (frames and graphics)

EZ Tube Connect 10FT Kit B Double-sided Graphic Package
  • Product Code: EZCNCT-10KIT-B-3X4X3G2
  • Display Size: 120″W x 90″H x 18.75″D
  • Template Size: (Side) 2ft. 24″W x 88″H, (Center) 5ft. 60″W x 88″H, (Medium Hard Case): 62.375″W x 32.25″H
  • Product Weight: 62 lbs (frames and graphics)

EZ Tube Connect 10FT Kit C Single-sided Graphic Package
  • Product Code: EZCNCT-10KIT-C-4X2X4G1
  • Display Size: 120″W x 90″H x 18.75″D
  • Template Size: (Side): 2ft. 24″W x 88″H, (Center): 5ft. 60″W x 88″H, (Medium Hard Case): 62.375″W x 32.25″H
  • Product Weight:61 lbs (frames and graphics)

EZ Tube Connect 10FT Kit C Double-sided Graphic Packages
  • Product Code: EZCNCT-10KIT-C-4X2X4G2
  • Display Size: 120″W x 90″H x 18.75″D
  • Template Size: (Side) 2ft. 24″W x 88″H, (Center) 5ft. 60″W x 88″H, (Medium Hard Case) 62.375″W x 32.25″H
  • Product Weight:61 lbs (frames and graphics)

EZ Tube Connect 10FT Kit D Single-sided Graphic Packages
  • Product Code: EZCNCT-10KIT-D-5X5G1
  • Display Size: 120″W x 90″H x 18.75″D
  • Template Size: (Left) 60.85″x 89.5″, (Right) 60.85″x 89.5″, (Medium Hard Case) 62.375″W x 32.25″H
  • Product Weight:53 lbs (frames and graphics)

EZ Tube Connect 10FT Kit D Double-sided Graphic Packages
  • Product Code: EZCNCT-10KIT-D-5X5G2
  • Display Size: 120″W x 90″H x 18.75″D
  • Template Size: (Medium Hard Case) 62.375″W x 32.25″H
  • Product Weight: 53 lbs (frames and graphics)

EZ Tube Connect 10FT Kit E Single-sided Graphic Package
  • Product Code: EZCNCT-10KIT-E-3X4X3G1
  • Display Size: 120″W x 90″H x 18.75″D
  • Template Size: (Side) 3ft. 37″W x 89.5″H, (Center) 4ft. 49″W x 89.5″H, (Medium Hard Case) 62.375″W x 32.25″H
  • Product Weight:62 lbs (frames and graphics)

EZ TUBE CONNECT 10FT KIT E DOUBLE-SIDED GRAPHIC PACKAGE
  • Product Code: EZCNCT-10KIT-E-3X4X3G2
  • Display Size: 120″W x 90″H x 18.75″D
  • Template Size: (Side) 3ft. 37″W x 89.5″H, (Center) 4ft. 49″W x 89.5″H, (Medium Hard Case): 62.375″W x 32.25″H
  • Product Weight:62 lbs (frames and graphics)

EZ Tube Connect 10FT Kit F Single-sided Graphic Packages
  • Product Code: EZCNCT-10KIT-F-3X3X3G1
  • Display Size: 120″W x 90″H x 18.75″D
  • Template Size: (Side) 3ft. 37″W x 89.5″H, (Medium Hard Case) 62.375″W x 32.25″H
  • Product Weight:86 lbs (frames and graphics)

EZ Tube Connect 10FT Kit F Double-sided Graphic Packages
  • Product Code: EZCNCT-10KIT-F-3X3X3G2
  • Display Size: 120″W x 90″H x 18.75″D
  • Template Size: (Side) 3ft. 37″W x 89.5″H, (Medium Hard Case) 62.375″W x 32.25″H
  • Product Weight: 86 lbs (frames and graphics)

EZ Tube Connect 10FT Kit G Single-sided Graphic Package
  • Product Code: EZCNCT-10KIT-G-4X2X4G1
  • Display Size: 120″W x 90″H x 18.75″D
  • Template Size: (Side) 2ft. 25″W x 89.5″H, (Center) 4ft. 49″W x 89.5″H, (Medium Hard Case) 62.375″W x 32.25″H
  • Product Weight: 61 lbs (frames and graphics)

EZ Tube Connect 10FT Kit G Double-sided Graphic Package
  • Product Code: EZCNCT-10KIT-G-4X2X4G2
  • Display Size: 120″W x 90″H x 18.75″D
  • Template Size: (Side) 2ft. 25″W x 89.5″H, (Center) 4ft. 49″W x 89.5″H, (Medium Hard Case) 62.375″W x 32.25″H
  • Product Weight:61 lbs (frames and graphics)

EZ Tube Connect 10FT Kit H Double-sided Graphic Packages
  • Product Code: EZCNCT-10KIT-H-5X5G2
  • Display Size: 120″W x 90″H x 18.75″D
  • Template Size: (Left) 60.85″x 89.5″, (Right) 60.85″x 89.5″, (Medium Hard Case) 62.375″W x 32.25″H
  • Product Weight:box1 = 53 lbs (frames and graphics)

EZ Tube Connect 10FT Kit I Single-sided Graphic Packages
  • Product Code: EZCNCT-10KIT-I-3X3X3G1
  • Display Size: 120″W x 90″H x 18.75″D
  • Template Size: 3ft: 37″W x 89.5″H, (Medium Hard Case): 62.375″W x 32.25″H
  • Product Weight:86 lbs (frames and graphics)

EZ Tube Connect 10FT Kit I Double-sided Graphic Packages
  • Product Code: EZCNCT-10KIT-I-3X3X3G2
  • Display Size: 120″W x 90″H x 18.75″D
  • Template Size: 3ft: 37″W x 89.5″H, (Medium Hard Case) 62.375″W x 32.25″H
  • Product Weight:86 lbs (frames and graphics)

EZ Tube Connect 20FT Kit A Double-sided Graphic Package
  • Product Code: EZCNCT-20KIT-A-5X10X5G1
  • Display Size: 240″W x 90″H x 18.75″D
  • Template Size: (Center) 121″W x 89.5″H, (Side) 60.75″W x 89.5″H, Medium Hard Case 62.375″W x 32.25″H
  • Product Weight: box1 = 53 lbs (frames and graphics), box2 = 49 lbs (frames and graphics)

EZ Tube Connect 20FT Kit A Double-sided Graphic Package
  • Product Code: EZCNCT-20KIT-A-5X10X5G2
  • Display Size: 240″W x 90″H x 18.75″D
  • Template Size: (Center) 121″W x 89.5″H, (Side) 60.75″W x 89.5″H, Medium Hard Case 62.375″W x 32.25″H
  • Product Weight:box1 = 53 lbs (frames and graphics), box2 = 49 lbs (frames and graphics)

EZ Tube Connect 20FT Kit B Single-sided Graphic Package
  • Product Code: EZCNCT-20KIT-B-8X4X8G1
  • Display Size: 240″W x 90″H x 18.75″D
  • Template Size:(Center) 49″W x 89.5″H, (Side) 96.5″W x 89.5″H, Medium Hard Case 62.375″W x 32.25″H
  • Product Weight: box1 = 57 lbs (frames and graphics), box2 = 48 lbs (frames and graphics)

EZ Tube Connect 20FT Kit B Double-sided Graphic Package
  • Product Code: EZCNCT-20KIT-B-8X4X8G2
  • Display Size: 240″W x 90″H x 18.75″D
  • Template Size: (Center) 49″W x 89.5″H, (Side) 96.5″W x 89.5″H, Medium Hard Case 62.375″W x 32.25″H
  • Product Weight:box1 = 57 lbs (frames and graphics), box2 = 48 lbs (frames and graphics)

EZ Tube Connect 20FT Kit C Single-sided Graphic Package
  • Product Code: EZCNCT-20KIT-C-5X5X5X5G1
  • Display Size: 240″W x 90″H x 18.75″D
  • Template Size: (Top Straight) 60.75″W x 88.5″H, (Top Curved) 60.75″W x 89.5″H, Medium Hard Case 62.375″W x 32.25″H
  • Product Weight:2boxes each box 53 lbs (frames and graphics)

EZ Tube Connect 20FT Kit C Double-sided Graphic Package
  • Product Code: EZCNCT-20KIT-C-5X5X5X5G2
  • Display Size: 240″W x 90″H x 18.75″D
  • Product Weight:2boxes each box 53 lbs (frames and graphics)

EZ Tube Connect 20FT Kit D Single-sided Graphic Package
  • Product Code: EZCNCT-20KIT-D-5X5X5X5G1
  • Display Size: 240″W x 90″H x 18.75″D
  • Template Size: 60.75″W x 89.5″H (Each), Medium Hard Case 62.375″W x 32.25″H
  • Product Weight:2boxes each box 53 lbs (frames and graphics)

EZ Tube Connect 20FT Kit D Double-sided Graphic Package
  • Product Code: EZCNCT-20KIT-D-5X5X5X5G2
  • Display Size: 60.75″W x 89.5″H (Each), Medium Hard Case 62.375″W x 32.25″H
  • Product Weight:2boxes each box 53 lbs (frames and graphics)

EZ Tube Connect 20FT Kit E Single-sided Graphic Package
  • Product Code: EZCNCT-20KIT-E-8X4X8G1
  • Display Size: 240″W x 90″H x 18.75″D
  • Template Size:(Center) 49″W x 89.5″H, (Side) 96.5″W x 89.5″H, Medium Hard Case 62.375″W x 32.25″H
  • Product Weight: box1 = 57 lbs (frames and graphics), box2 = 48 lbs (frames and graphics)

EZ Tube Connect 20FT Kit E Double-sided Graphic Package
  • Product Code: EZCNCT-20KIT-E-8X4X8G2
  • Display Size: 240″W x 90″H x 18.75″D
  • Template Size: (Center) 49″W x 89.5″H, (Side) 96.5″W x 89.5″H, Medium Hard Case 62.375″W x 32.25″H
  • Product Weight:box1 = 57 lbs (frames and graphics), box2 = 48 lbs (frames and graphics)

EZ Tube Connect 20FT Kit F Single-sided Graphic Package
  • Product Code: EZCNCT-20KIT-F-8X4X8G1
  • Display Size: 240″W x 90″H x 18.75″D
  • Template Size: (Center) 49″W x 89.5″H, (Side) 96.5″W x 89.5″H, Medium Hard Case 62.375″W x 32.25″H
  • Product Weight: box1 = 57 lbs (frames and graphics), box2 = 48 lbs (frames and graphics)

EZ Tube Connect 20FT Kit F Double-sided Graphic Package
  • Product Code: EZCNCT-20KIT-F-8X4X8G2
  • Display Size: 240″W x 90″H x 18.75″D
  • Template Size: (Center) 49″W x 89.5″H, (Side) 96.5″W x 89.5″H, Medium Hard Case 62.375″W x 32.25″H
  • Product Weight: box1 = 57 lbs (frames and graphics), box2 = 48 lbs (frames and graphics)

EZ Tube Connect 20FT Kit G Single-sided Graphic Package
  • Product Code: EZCNCT-20KIT-G-5X5X5X5G1
  • Display Size: 240″W x 90″H x 18.75″D
  • Template Size: (Top Straight) 60.75″W x 88.5″H, Medium Hard Case 62.375″W x 32.25″H
  • Product Weight:2boxes each box 53 lbs (frames and graphics)

EZ TUBE CONNECT 20FT KIT G DOUBLE-SIDED GRAPHIC PACKAGE
  • Product Code: EZCNCT-20KIT-G-5X5X5X5G2
  • Display Size: 240″W x 90″H x 18.75″D
  • Template Size: (Top Straight) 60.75″W x 88.5″H, Medium Hard Case 62.375″W x 32.25″H
  • Product Weight:boxes each box 53 lbs (frames and graphics)

EZ TUBE CONNECT 20FT KIT H SINGLE-SIDED GRAPHIC PACKAGE
  • Product Code: EZCNCT-20KIT-H-5X5X5X5G1
  • Display Size: 240″W x 90″H x 18.75″D
  • Template Size: (Top Straight) 60.75″W x 88.5″H, (Top Sloped) 60.75″W x 89.5″H, Medium Hard Case 62.375″W x 32.25″H
  • Product Weight:2boxes each box 53 lbs (frames and graphics)


EZ Tube Connect Single Frame Displays

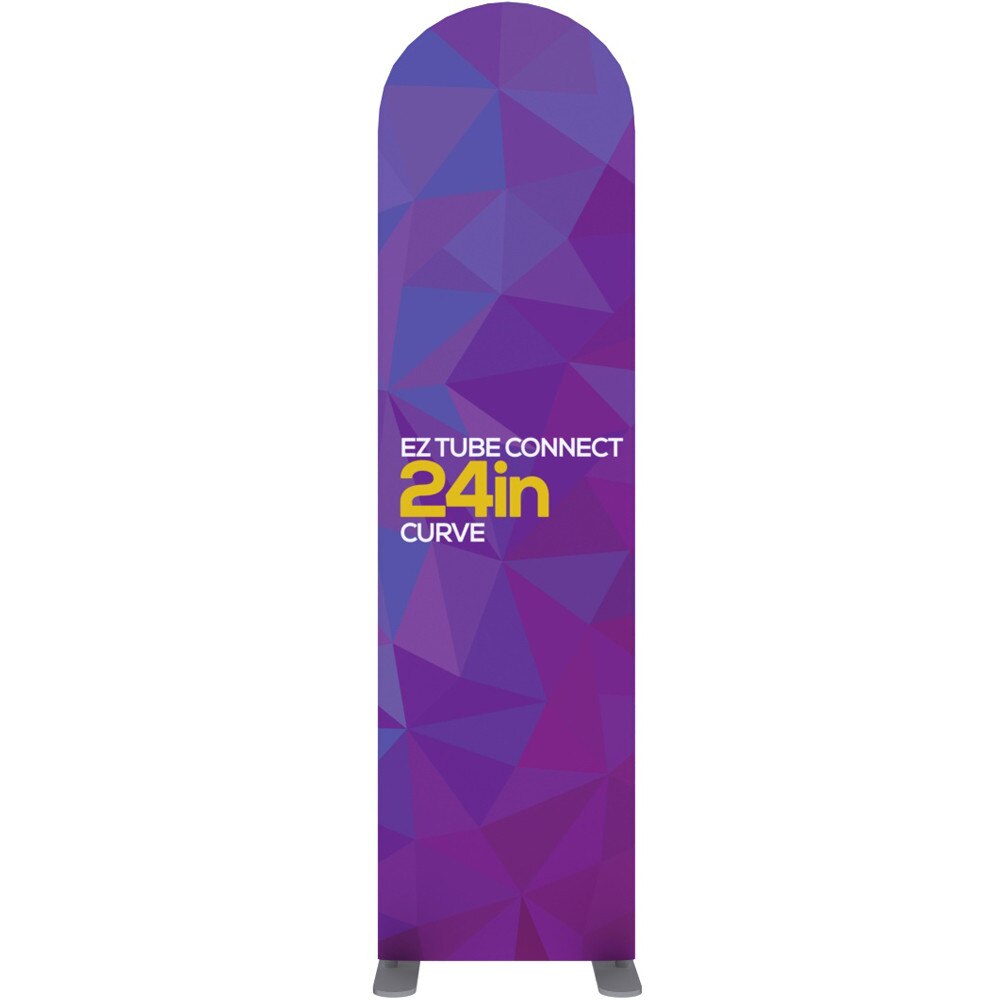

EZ Tube Connect 24″ Curved Top Single-sided White Back Fabric Graphic Package
  • Product Code: EZCNCT-CRV-24x90G1
  • Display Size: 24″W x 90″H x 18.75″D
  • Template Size: 25″W x 89.5″H
  • Product Weight: 16 lbs (frames and graphics)

EZ Tube Connect 24″ Curved Top Double-sided Graphic Packages
  • Product Code: EZCNCT-CRV-24x90G2
  • Display Size:24″W x 90″H x 18.75″D
  • Template Size: 25″W x 89.5″H
  • Product Weight: 16 lbs (frames and graphics)

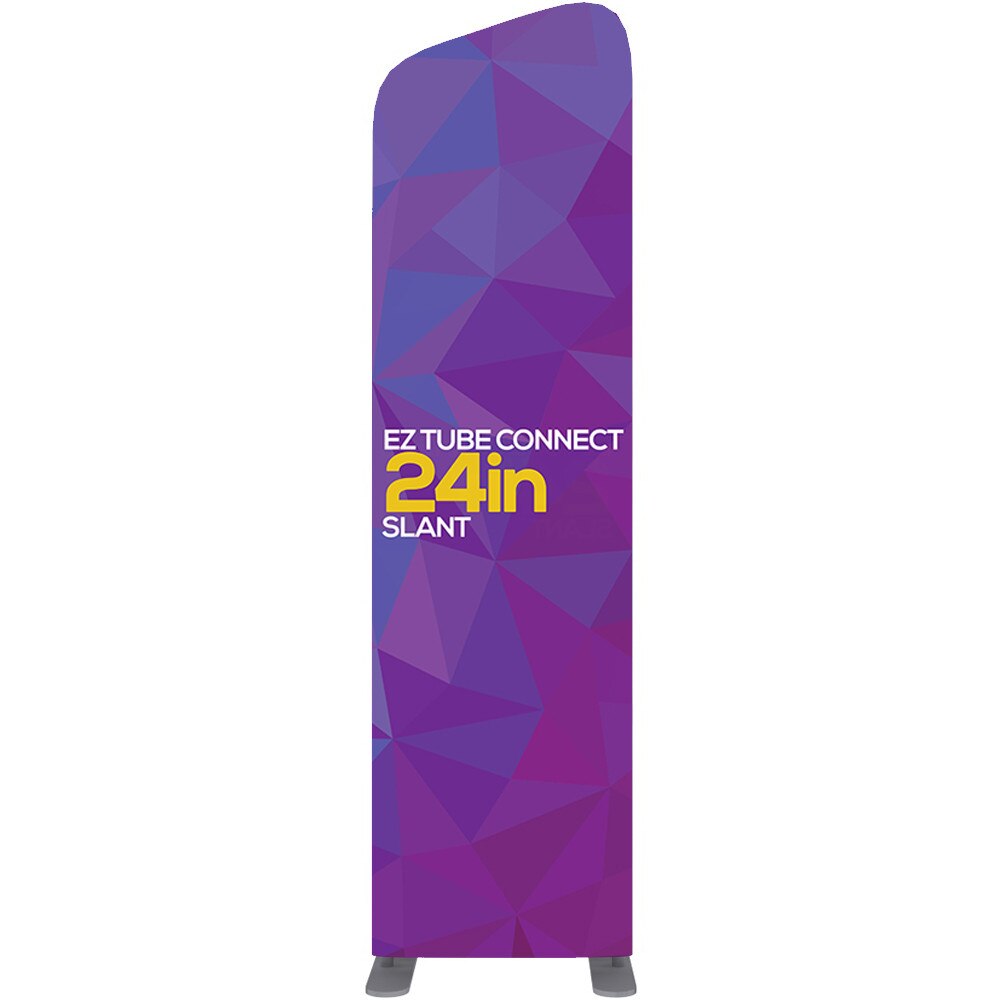

EZ Tube Connect 24″ Slanted Top Single-sided White Back Fabric Graphic Packages
  • Product Code:EZCNCT-SLT-24x90G1
  • Display Size:24″W x 90″H x 18.75”D
  • Template Size:25″W x 89.5“H
  • Product Weight:16 lbs (frames and graphics)

EZ Tube Connect 24″ Slanted Top Double-sided Graphic Packages
  • Product Code: EZCNCT-SLT-24x90G2
  • Display Size: 24″W x 90″H x 18.75”D
  • Template Size: 25″W x 89.5“H
  • Product Weight: 16 lbs (frames and graphics)

EZ Tube Connect 24″ Straight Top Single-sided White Back Fabric Graphic Packages
  • Product Code: EZCNCT-STR-24x90G1
  • Display Size: 24”W x 90”H x 18.75”D
  • Template Size: 25“W x 89.5“H
  • Product Weight: 16 lbs (frames and graphics)

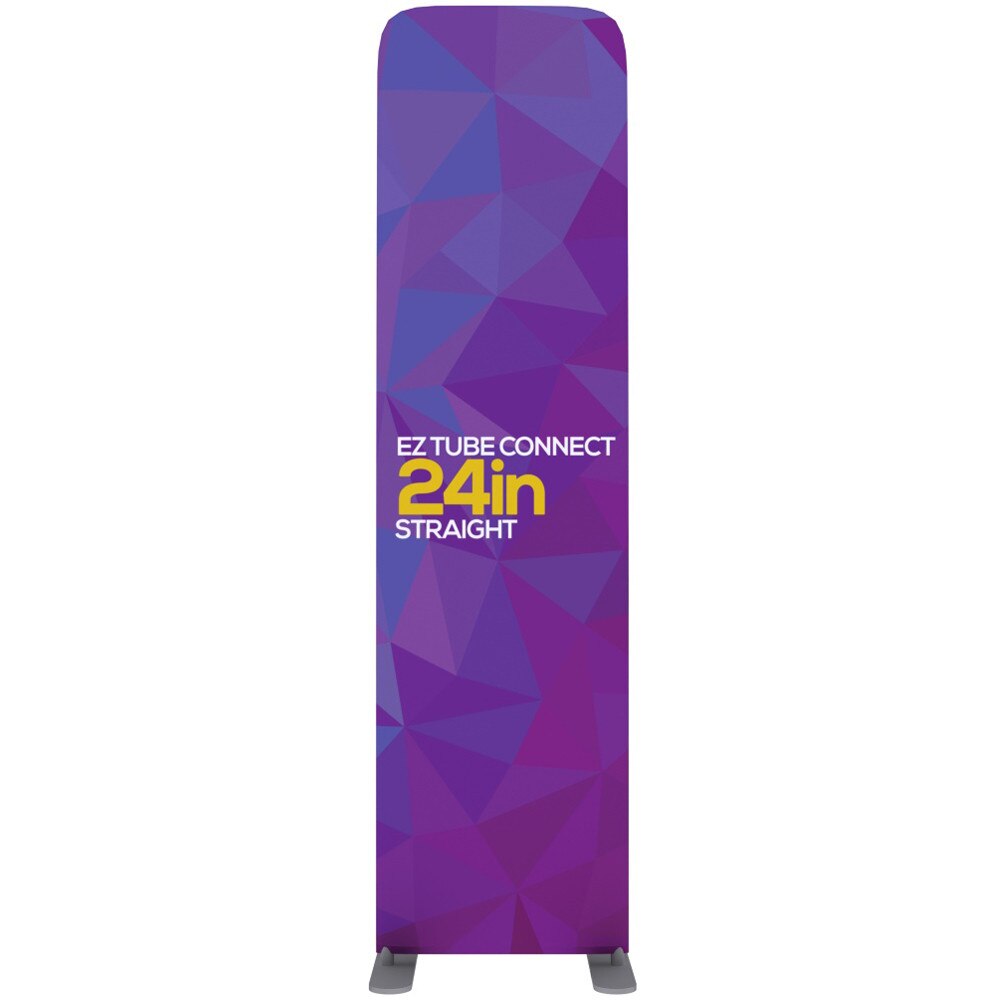

EZ Tube Connect 24″ Straight Top Double-sided Graphic Packages
  • Product Code: EZCNCT-STR-24x90G2
  • Display Size:24”W x 90”H x 18.75”D
  • Template Size:25“W x 89.5“H
  • Product Weight:16 lbs (frames and graphics)

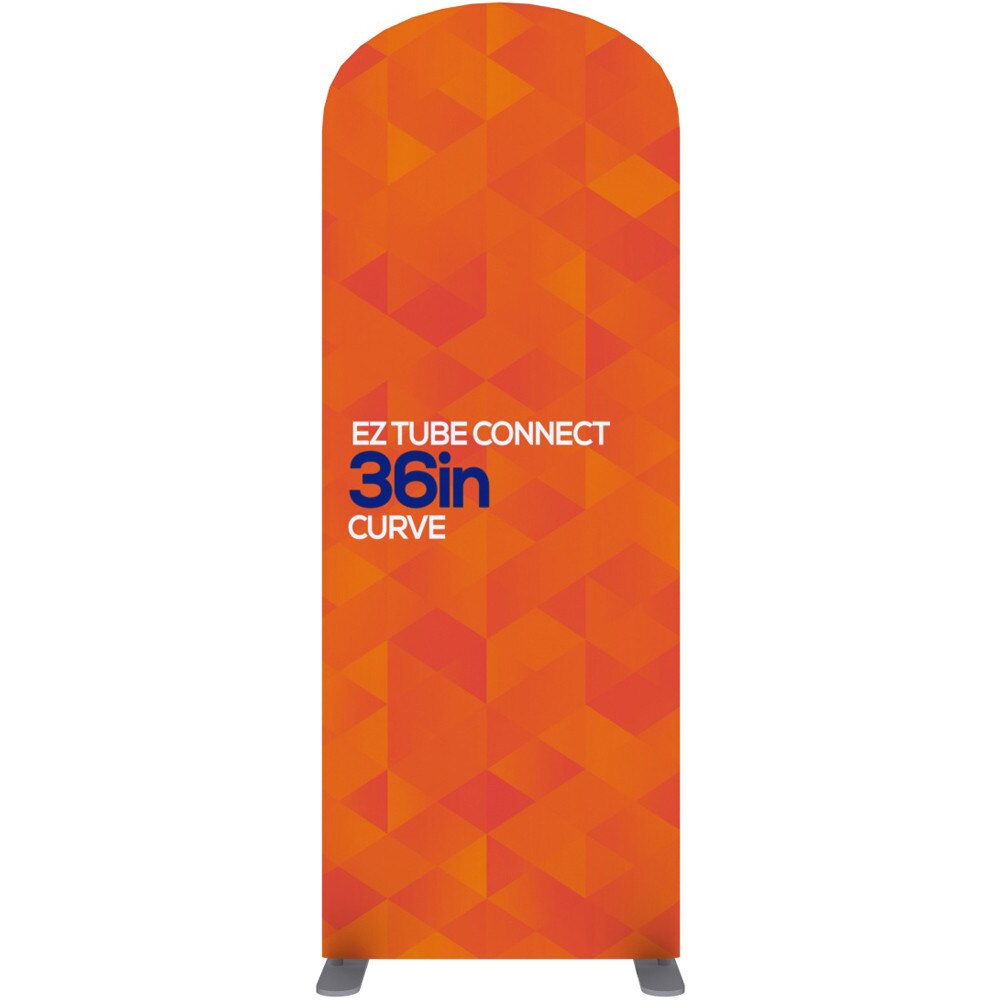

EZ Tube Connect 36″ Curved Top Single-sided White Back Fabric Graphic Packages
  • Product Code: EZCNCT-CRV-36x90G1
  • Display Size:36″ W x 90″ H x 18.75″ D
  • Template Size:37″W x 89.5″H
  • Product Weight:17 lbs (frames and graphics)

EZ Tube Connect 36″ Curved Top Double-sided Graphic Packages
  • Product Code: EZCNCT-CRV-36x90G2
  • Display Size: 36″ W x 90″ H x 18.75″ D
  • Template Size: 37″W x 89.5″H
  • Product Weight: 17 lbs (frames and graphics)

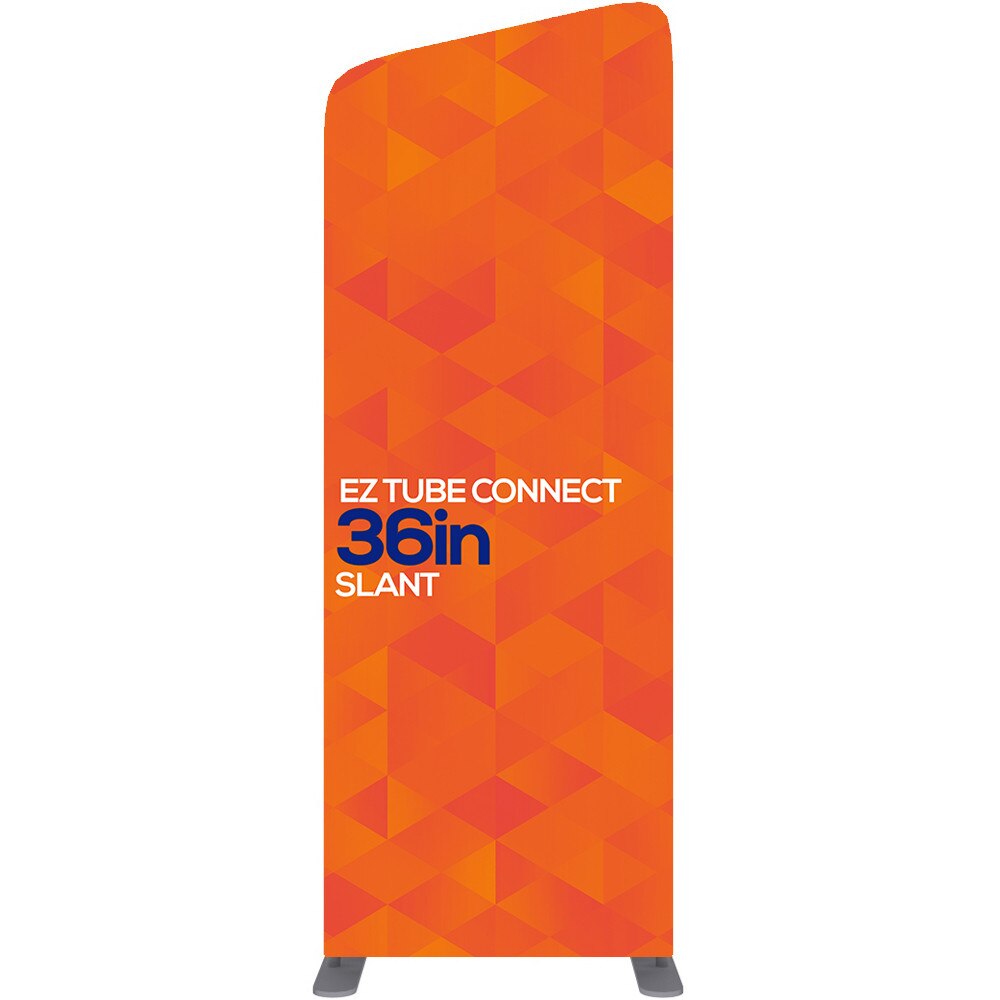

EZ Tube Connect 36″ Slanted Top Single-sided White Back Fabric Graphic Packages
  • Product Code: EZCNCT-SLT-36x90G1
  • Display Size: 36″W x 90″H x 18.75″D
  • Template Size: 37″W x 89.5″H
  • Product Weight: 17 lbs (frames and graphics)

EZ Tube Connect 36″ Slanted Top Double-sided Graphic Packages
  • Product Code: EZCNCT-SLT-36x90G2

EZ Tube Connect 36″ Straight Top Single-sided White Back Fabric Graphic Packages
  • Product Code: EZCNCT-STR-36x90G1
  • Display Size: 36”W x 90”H x 18.75”D
  • Template Size: 37“W x 89.5“H
  • Product Weight: 17 lbs (frames and graphics)

EZ Tube Connect 48″ Curved Top Single-sided White Back Fabric Graphic Packages
  • Product Code: EZCNCT-CRV-48x90G1
  • Display Size:48″W x 90″H x 18.75″D
  • Template Size:49″W x 89.5″H
  • Product Weight:17 lbs (frames and graphics)

EZ Tube Connect 48″ Curved Top Double-sided Graphic Packages
  • Product Code: EZCNCT-CRV-48x90G2
  • Display Size: 48″W x 90″H x 18.75″D
  • Template Size: 49″W x 89.5″H
  • Product Weight: 17 lbs (frames and graphics)

EZ Tube Connect 48″ Slanted Top Single-sided White Back Fabric Graphic Packages
  • Product Code: EZCNCT-SLT-48x90G1
  • Display Size:48″W x 90″H x 18.75″D
  • Template Size:49″W x 89.5″H
  • Product Weight:17 lbs (frames and graphics)

EZ Tube Connect 48″ Slanted Top Double-sided Graphic Packages
  • Product Code: EZCNCT-SLT-48x90G2
  • Display Size: 48″W x 90″H x 18.75″D
  • Template Size: 49″W x 89.5″H
  • Product Weight: 17 lbs (frames and graphics)

EZ Tube Connect 48″ Straight Top Single-sided White Back Fabric Graphic Packages
  • Product Code: EZCNCT-STR-48x90G1
  • Display Size: 48”W x 90”H x 18.75”D
  • Template Size: 49“W x 89.5 “H

EZ Tube Connect 48″ Straight Top Double-sided Graphic Packages
  • Product Code: EZCNCT-STR-48x90G2
  • Display Size: 48”W x 90”H x 18.75”D
  • Template Size: 41”W x 12”H x 4”D
  • Product Weight: 17 lbs (frames and graphics)

EZ Tube Connect 60″ Curved Top Single-sided White Back Fabric Graphic Packages
  • Product Code: EZCNCT-CRV-60x90G1
  • Display Size: 60″W x 90″H x 18.75″D
  • Template Size: 60.75″W x 8.59″H
  • Product Weight: 17 lbs (frames and graphics)

EZ Tube Connect 60″ Curved Top Double-sided Graphic Packages
  • Product Code: EZCNCT-CRV-60x90G2
  • Display Size: 60″W x 90″H x 18.75″D
  • Template Size: 60.75″W x 8.59″H
  • Product Weight: 17 lbs (frames and graphics)

EZ Tube Connect 60″ Curved Top Double-sided Graphic Packages
  • Product Code: EZCNCT-CRV-60x90GO-W
  • Display Size: 60″W x 90″H x 18.75″D
  • Template Size: 60.75″W x 8.59″H

EZ Tube Connect 60″ Slanted Top Single-sided White Back Fabric Graphic Packages
  • Product Code: EZCNCT-SLT-60x90G1
  • Display Size:60″W x 90″H x 18.75″D
  • Template Size:60.75″W x 89.5″H
  • Product Weight:17 lbs (frames and graphics)

EZ Tube Connect 60″ Slanted Top Double-sided Graphic Packages
  • Product Code: EZCNCT-SLT-60x90G2
  • Display Size: 60″W x 90″H x 18.75″D
  • Template Size: 60.75″W x 89.5″H
  • Product Weight: 60.75″W x 89.5″H

EZ Tube Connect 60″ Straight Top Single-sided White Back Fabric Graphic Packages
  • Product Code: EZCNCT-STR-60x90G1
  • Display Size: 60”W x 90”H x 18.75”D
  • Template Size: 60.75“W x 89.5“H
  • Product Weight: 17 lbs (frames and graphics)

EZ Tube Connect 60″ Straight Top Double-sided Graphic Packages
  • Product Code: EZCNCT-STR-60x90G2
  • Display Size: 60”W x 90”H x 18.75”D
  • Template Size: 60.75“W x 89.5“H
  • Product Weight: 17 lbs (frames and graphics)

EZ Tube Connect 8ft Straight Top Single-sided White Back Fabric Graphic Packages
  • Product Code: EZCNCT-STR-96x90G1
  • Display Size: 96”W x 90”H x 18.75”D
  • Template Size: 96.5“W x 89.5“H
  • Product Weight: 22 lbs (frames and graphics)

EZ Tube Connect 8ft Straight Top Double-sided Graphic Packages
  • Product Code: EZCNCT-STR-96x90G2
  • Display Size:96.5“W x 89.5“H
  • Template Size: 41”W x 12”H x 4”D
  • Product Weight: 22 lbs (frames and graphics)

EZ Tube Connect 10ft Straight Top Single-sided White Back Fabric Graphic Packages
  • Product Code: EZCNCT-STR-120x90G1
  • Display Size:120”W x 90”H x 18.75”D
  • Template Size:121“W x 89..5“H
  • Product Weight:22 lbs (frames and graphics)

EZ Tube Connect 10ft Straight Top Double-sided Graphic Packages
  • Product Code: EZCNCT-STR-120x90G2
  • Display Size: 120”W x 90”H x 18.75”D
  • Template Size: 121“W x 89..5“H
  • Product Weight: 22 lbs (frames and graphics)
