Verified Aug 11, 2026 Aspen 40S Fabric Frames - Wall Mounted (40MM SEG Extrusion) -Saver
SKU AFWM-MX

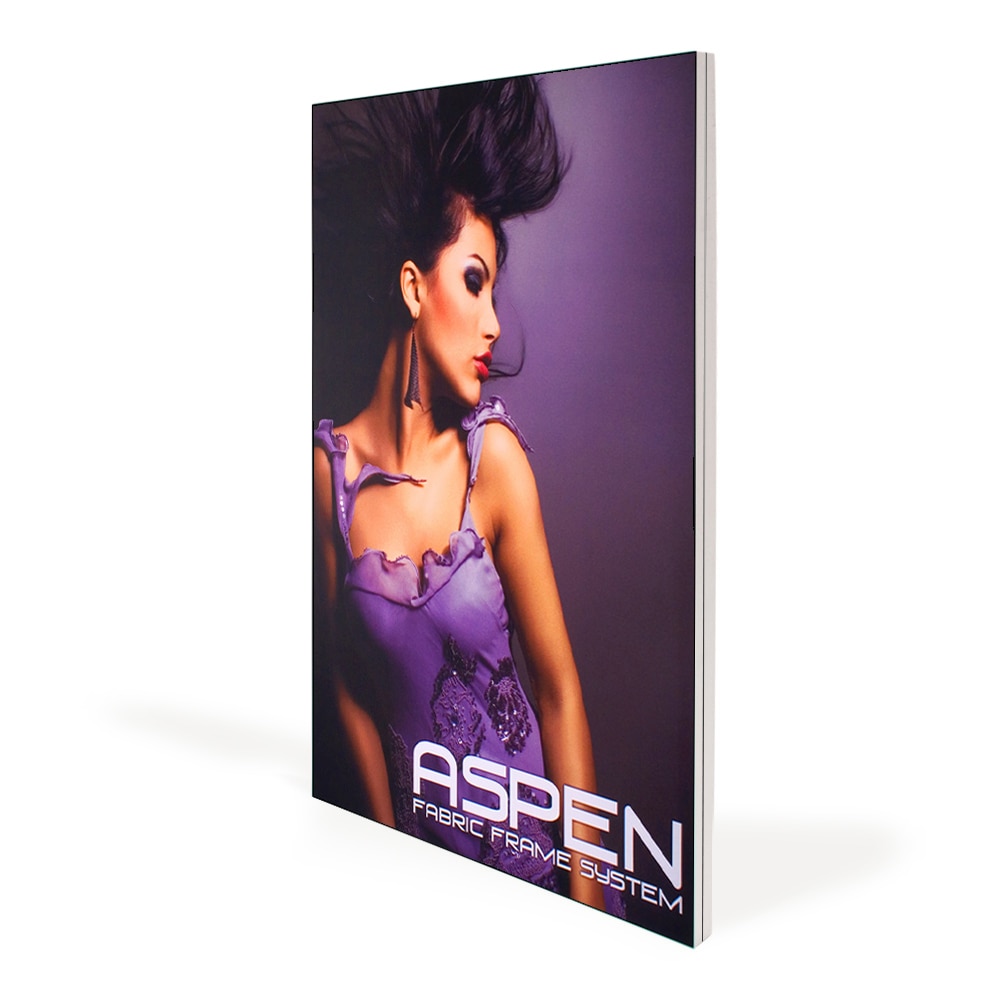

A classic in the Resort Extrusion collection, the Aspen SEG Fabric Frame is the perfect blend of versatility and class. Aspen's outside finish has a line groove, like an indented stripe, for added style, but is purposeful for easily install
- Ships in
- 3 cartons
- Weight
- 1–30 lbs
Specifications
Typed values from the master record. Last verified Aug 11, 2026.
| Product code | AFWM-MX |
|---|---|
| Shipping cartons | 73″ W × 7″ H × 7″ D · Graphic Package 98″ W × 10″ H × 7″ D · Graphic Package 49″ W × 7″ H × 7″ D · Graphic Package |
| Shipping weight | Graphic Package 13 lbs Graphic Package 16 lbs Graphic Package 15 lbs Graphic Package 17 lbs Graphic Package 18 lbs Graphic Package 20 lbs Graphic Package 21 lbs Graphic Package 24 lbs Graphic Package 22 lbs Graphic Package 25 lbs Graphic Package 19 lbs Graphic Package 27 lbs Graphic Package 29 lbs Graphic Package 26 lbs Graphic Package 30 lbs Graphic Only 2 lbs Graphic Only 3 lbs Graphic Only 1.08 lbs Graphic Only 1.25 lbs Graphic Only 1.42 lbs Graphic Only 1.4 lbs Graphic Only 1.62 lbs Graphic Only 1.84 lbs Graphic Only 1.72 lbs Graphic Only 1.99 lbs Graphic Only 2.26 lbs Graphic Only 2.04 lbs Graphic Only 2.36 lbs Graphic Only 2.68 lbs Graphic Only 2.73 lbs Graphic Only 3.1 lbs Graphic Only 1 lbs Graphic Only 3.52 lbs Graphic Only 1.12 lbs Graphic Only 1.59 lbs Graphic Only 2.06 lbs Graphic Only 2.53 lbs Graphic Only 3.47 lbs Graphic Only 3.94 lbs Graphic Only 1.24 lbs Graphic Only 1.76 lbs Graphic Only 2.28 lbs Graphic Only 2.8 lbs Graphic Only 3.32 lbs Graphic Only 3.84 lbs Graphic Only 4.36 lbs Hardware Only 11 lbs Hardware Only 13 lbs Graphic Package 6.5 lbs Graphic Package 9 lbs Hardware Only 14 lbs Graphic Package 10.5 lbs Hardware Only 15 lbs Graphic Package 5 lbs Hardware Only 17 lbs Graphic Package 12 lbs Hardware Only 18 lbs Graphic Package 15.5 lbs Hardware Only 20 lbs Graphic Only 1.18 lbs Hardware Only 22 lbs Graphic Only 1.45 lbs Hardware Only 5.5 lbs Hardware Only 7 lbs Hardware Only 8.5 lbs Hardware Only 10 lbs Hardware Only 24 lbs Hardware Only 11.2 lbs Hardware Only 21 lbs Hardware Only 12.5 lbs Hardware Only 25 lbs Weight varies by configuration — you receive the option you select. |
Overview

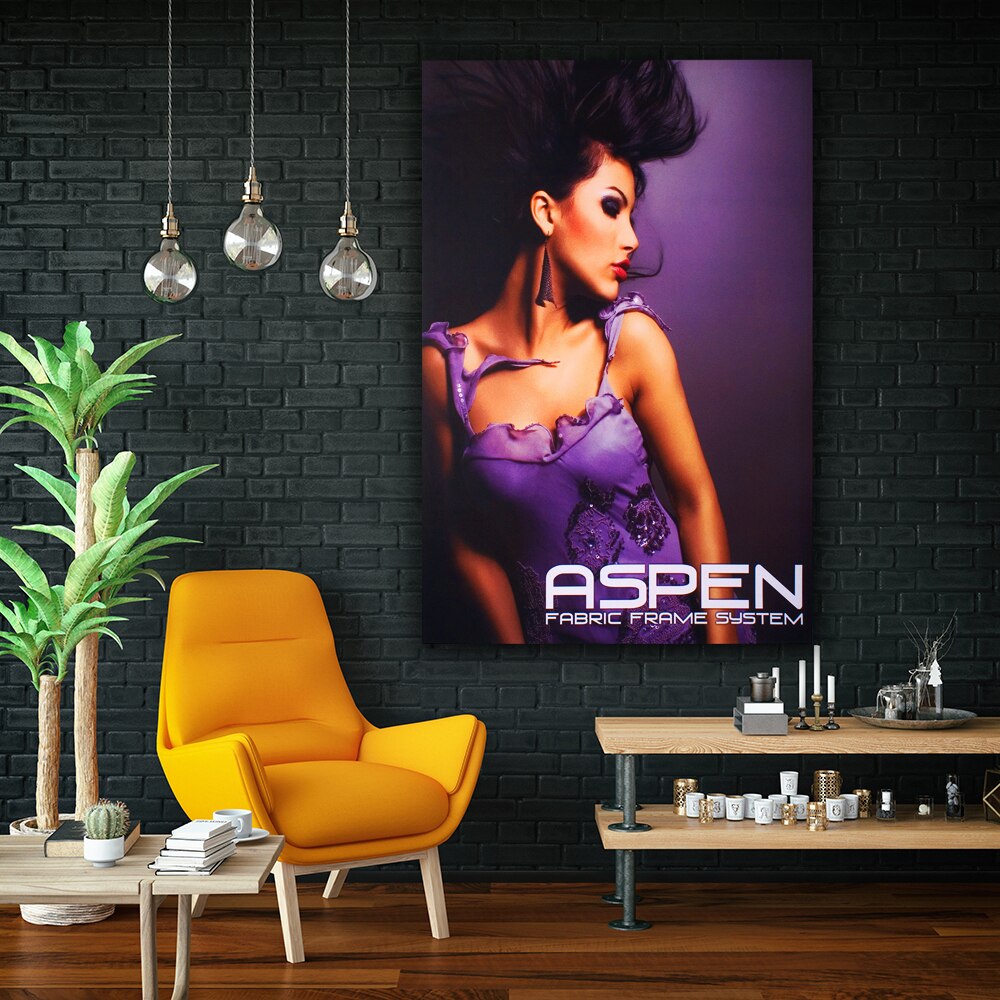

A classic in the Resort Extrusion collection, the Aspen SEG Fabric Frame is the perfect blend of versatility and class. Aspen's outside finish has a line groove, like an indented stripe, for added style, but is purposeful for easily installing accessories. This wall mounted option is great for showrooms, retail stores or anywhere needing that extra marketing power.

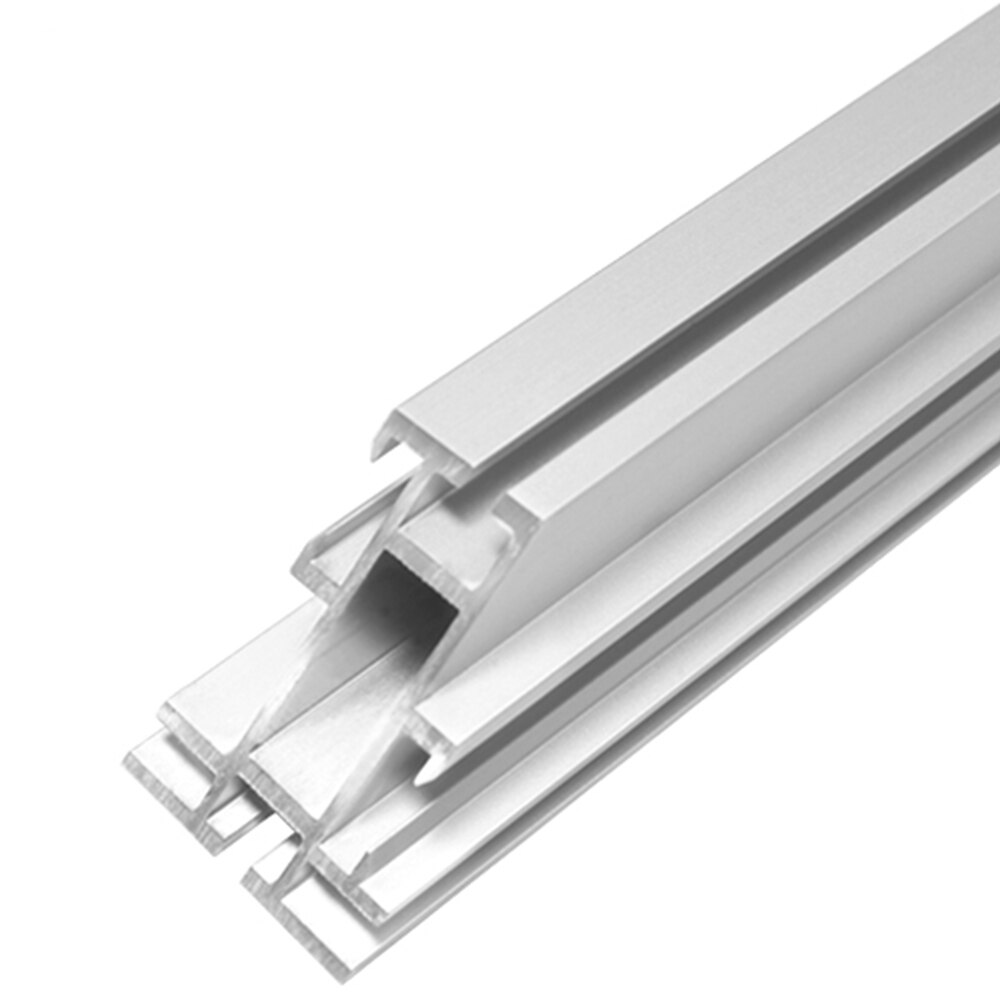

The Aspen 40S has a profile width of 40mm. (.1.57in.). The outside finish is solid with a groove line in the center of the extrusion. The silicone beading can fit 12mm. (.47 in) deep and 4 mm. (.15 in.) wide into the trough of the frame. Not compatible with lights (cannot be backlit).
Quick Install and Set Up Overview
Remove extrusion and parts out of your packaging. Layout out your pieces. Find one of your "L" Brackets with a screw. Insert one of the corner "L" brackets to the end of one of the extrusion sticks. Tighten the brackets with the Allen Wrench provided. Then repeat with all the corners.
Next you’ll want to pre-drill in your wall mounts (Provided with Graphic Package options). Start with the wall mounts that will hold the top extrusion. Evenly space them out under the top extrusion frame. Don’t forget to level the wall mounts. Once you have your frame and top wall mounts set. Hang the extrusion on top of the wall mounts. Then drill in the remaining wall mounts inside of the bottom extrusion to set in place your frame. Wall mounts will be hidden once you place your graphic on to the frame.
Then place your SEG (Silicone Edge Graphic) Graphics into the frame grooves, keeping a tight and finished look.
Product Applications
- Wall Decoration for home & office
- Retail store wall advertising
- Restaurants
- Art Galleries
- Locker rooms
- Offices
- Showrooms
- Backdrops
Features
- Print Process: Dye Sub Printing
Graphic Package Includes
- Frame w/ “L” corner Brackets
- Wall mounts
- Single-sided Fabric Graphics w/ Silicone edging
Graphic Only Includes
- Single-sided Fabric Graphics w/ Silicone edging
