VAIL60S Resort Extrusions No Wall Mount

SKU VAIL60SNWM

Ships in: 7 cartons
Weight: 1–56.43 lbs

Specifications

Typed values from the master record. Last verified Aug 11, 2026.

Product code	VAIL60SNWM
Shipping cartons	48″ W × 7″ H × 7″ D · Hardware Only (Case Cut) 74″ W × 7″ H × 7″ D · Hardware Only (Case Cut) 74″ W × 10″ H × 7″ D · Hardware Only (Case Cut) 50″ W × 7″ H × 7″ D · Graphic Package 96″ W × 7″ H × 7″ D · Graphic Package 98″ W × 10″ H × 7″ D · Graphic Package 62″ W × 9″ H × 9″ D · Graphic Package
Shipping weight	Hardware Only (Case Cut) 12 lbs Hardware Only (Case Cut) 14 lbs Hardware Only (Case Cut) 23.63 lbs Hardware Only (Case Cut) 24.6 lbs Hardware Only (Case Cut) 24 lbs Hardware Only (Case Cut) 25 lbs Hardware Only (Case Cut) 28 lbs Hardware Only (Case Cut) 16 lbs Hardware Only (Case Cut) 17 lbs Hardware Only (Case Cut) 28.25 lbs Hardware Only (Case Cut) 56.43 lbs Hardware Only (Case Cut) 20 lbs Hardware Only (Case Cut) 28.6 lbs Hardware Only (Case Cut) 31.56 lbs Hardware Only (Case Cut) 29.88 lbs Hardware Only (Case Cut) 30.9 lbs Hardware Only (Case Cut) 13 lbs Hardware Only (Case Cut) 18.6 lbs Hardware Only (Case Cut) 30 lbs Hardware Only (Case Cut) 33 lbs Hardware Only (Case Cut) 26 lbs Hardware Only (Case Cut) 34 lbs Hardware Only (Case Cut) 15 lbs Hardware Only (Case Cut) 21 lbs Hardware Only (Case Cut) 32 lbs Hardware Only (Case Cut) 18 lbs Hardware Only (Case Cut) 19 lbs Hardware Only (Case Cut) 23 lbs Hardware Only (Case Cut) 42 lbs Graphic Package 9 lbs Graphic Package 11 lbs Graphic Package 16 lbs Graphic Package 14 lbs Graphic Package 18 lbs Graphic Package 31 lbs Graphic Package 20 lbs Graphic Package 13 lbs Graphic Package 15 lbs Graphic Package 17 lbs Graphic Package 28 lbs Graphic Package 22 lbs Graphic Package 35 lbs Graphic Package 25 lbs Graphic Package 29 lbs Graphic Package 19 lbs Graphic Package 25.25 lbs Graphic Package 19.91 lbs Graphic Package 38 lbs Graphic Package 16.78 lbs Graphic Package 52.25 lbs Graphic Package 54 lbs Graphic Package 24 lbs Graphic Package 34 lbs Graphic Package 44 lbs Graphic Package 21 lbs Graphic Package 30 lbs Graphic Package 37 lbs Graphic Package 36 lbs Graphic Package 27 lbs Graphic Package (Case Cut) 18 lbs Graphic Package (Case Cut) 31 lbs Graphic Package (Case Cut) 20 lbs Graphic Package (Case Cut) 17 lbs Graphic Package (Case Cut) 22 lbs Graphic Package (Case Cut) 35 lbs Graphic Package (Case Cut) 19 lbs Graphic Package (Case Cut) 25 lbs Graphic Package (Case Cut) 52.25 lbs Graphic Package (Case Cut) 29 lbs Graphic Package (Case Cut) 54 lbs Graphic Package (Case Cut) 16 lbs Graphic Package (Case Cut) 24 lbs Graphic Package (Case Cut) 34 lbs Graphic Package (Case Cut) 37 lbs Graphic Package (Case Cut) 21 lbs Graphic Package (Case Cut) 30 lbs Graphic Package (Case Cut) 38 lbs Graphic Package (Case Cut) 36 lbs Graphic Package (Case Cut) 27 lbs Graphic Package (Case Cut) 48 lbs Graphic Only 3 lbs Graphic Only 19 lbs Graphic Only 1 lbs Graphic Only 1.12 lbs Graphic Only 1.25 lbs Graphic Only 1.08 lbs Graphic Only 1.42 lbs Graphic Only 1.59 lbs Graphic Only 1.76 lbs Graphic Only 1.18 lbs Graphic Only 1.4 lbs Graphic Only 1.62 lbs Graphic Only 2.06 lbs Graphic Only 2.28 lbs Graphic Only 4 lbs Graphic Only 1.45 lbs Graphic Only 1.72 lbs Graphic Only 1.99 lbs Graphic Only 2.26 lbs Graphic Only 2.53 lbs Graphic Only 2.8 lbs Graphic Only 2.04 lbs Graphic Only 2.36 lbs Graphic Only 3.32 lbs Graphic Only 2.73 lbs Graphic Only 3.1 lbs Graphic Only 3.47 lbs Graphic Only 3.84 lbs Graphic Only 2.68 lbs Graphic Only 4.36 lbs Graphic Only 1.24 lbs Graphic Only 4.88 lbs Graphic Only 6 lbs Hardware Only 13 lbs Hardware Only 17.2 lbs Hardware Only 12 lbs Hardware Only 14 lbs Hardware Only 16 lbs Hardware Only 17 lbs Hardware Only 23.63 lbs Hardware Only 24.6 lbs Hardware Only 16.2 lbs Hardware Only 19.2 lbs Hardware Only 21.21 lbs Hardware Only 21 lbs Hardware Only 25 lbs Hardware Only 28 lbs Hardware Only 2 lbs Hardware Only 18 lbs Hardware Only 22 lbs Hardware Only 28.25 lbs Hardware Only 27.25 lbs Hardware Only 19 lbs Hardware Only 28.6 lbs Hardware Only 29.56 lbs Hardware Only 23 lbs Hardware Only 29.89 lbs Hardware Only 30.9 lbs Hardware Only 20 lbs Hardware Only 30 lbs Hardware Only 33 lbs Hardware Only 26 lbs Hardware Only 34 lbs Hardware Only 15 lbs Hardware Only 32 lbs Hardware Only 35 lbs Hardware Only 24.76 lbs Hardware Only 42 lbs Weight varies by configuration — you receive the option you select.

Downloads

Spec sheet (PDF)

VAIL60S Resort Extrusions No Wall Mount — Spec sheet

Installation guide (PDF)

VAIL60S Resort Extrusions No Wall Mount — Installation guide

Setup video

VAIL60S Resort Extrusions No Wall Mount — Setup video

Overview

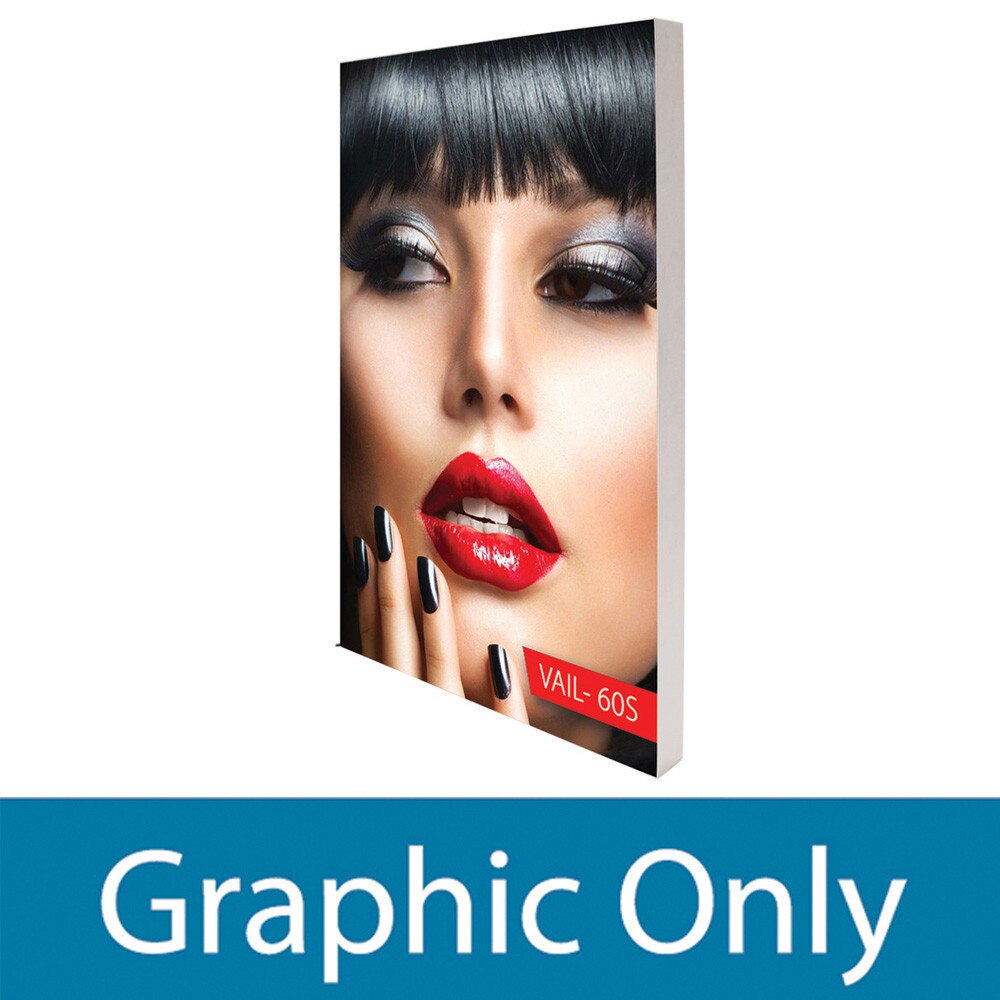

Vail60S is a single-sided Resort Extrusion with a 60mm wide profile. This extrusion has a solid outside finish. Because the profile width is so thick, VAIL- 60S is especially good for free-standing large images (tall or wide) because it is more stable than the skinnier profile widths; however, it can be wall mounted or hung overhead. When installing the fabric graphic, the keter can fit 12mm deep and 3mm wide into the keter trough. This extrusion is not compatible with lights (cannot be backlit).

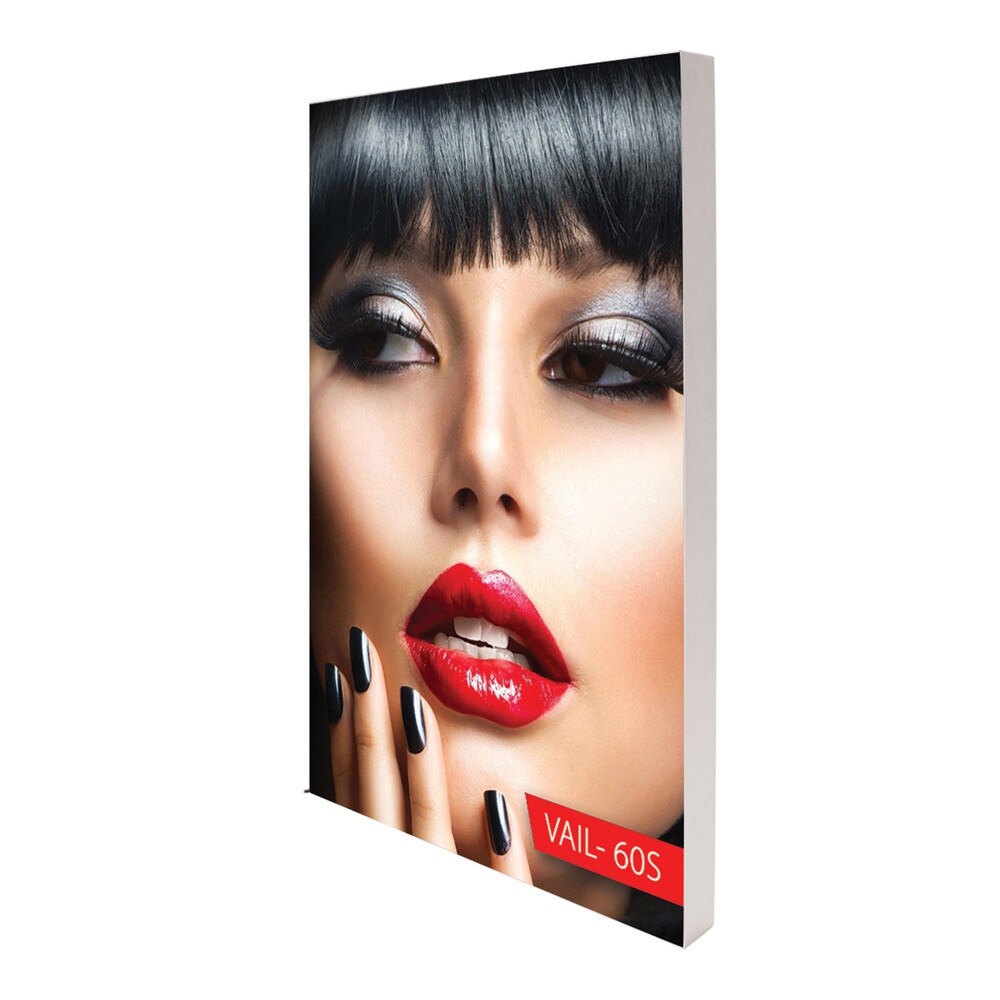

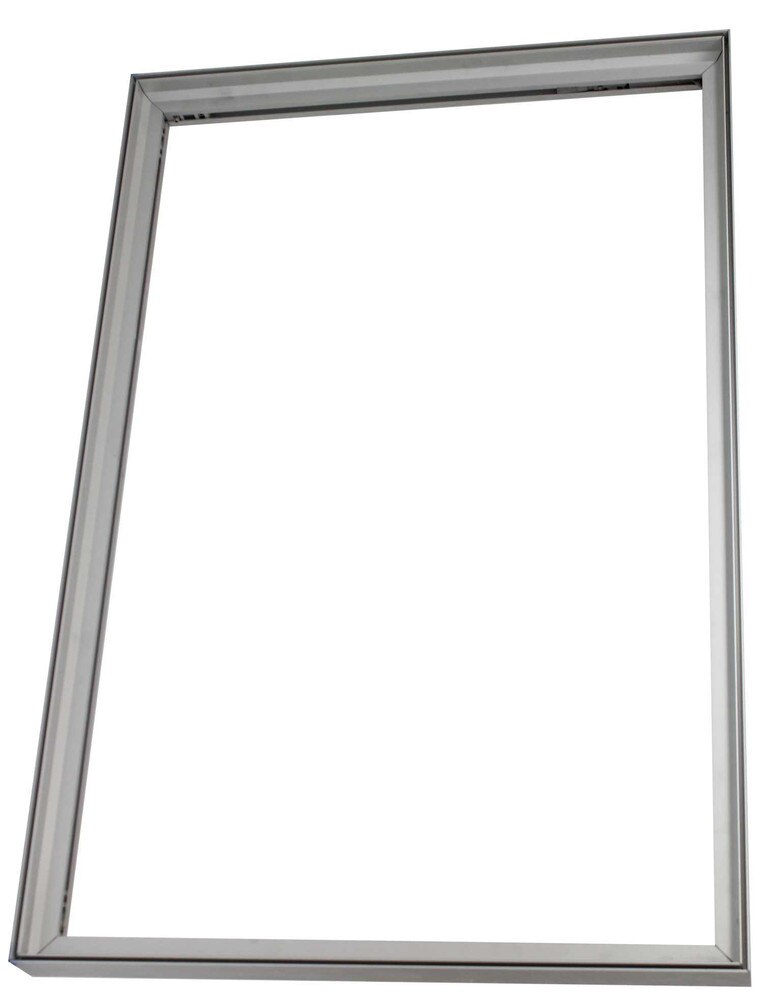

The "case cut" option includes a split and connector for the horizontal and/or vertical frame profiles, allowing them to fit into a smaller box or hard case. For instance, a standard 3ft x 8ft frame typically comprises (2) 3ft profiles and (2) 8ft profiles. In contrast, a case cut 3ft x 8ft frame contains (2) 3ft profiles and (4) 4ft profiles. Two of the 4ft profiles can be connected to form the two 8ft lengths required for the frame.

Suggested Uses: Retail Stores, Restaurants, Art Galleries, Grand Openings, Trade Shows, Offices, Showrooms, Backdrop, Photo-ops, Partition Wall, Step & Repeat, Etc.

Print Process: Full Color Dye Sublimation

Hardware Setup: : To make one edge of the frame, take two cut VAIL- 60S extrusions and, between, add Split Connector; tighten. Repeat this twice. Take one completed 10' edge and one 7' edge and slide in Corner Connector; tighten. Repeat this three times. Vertically insert ends of VAIL-40C into top and bottom of the frame; tighten.

Graphic Installation: Transversely, push corners of graphic into the frame's recessed groove. Then, starting midway on the frame going toward the corners, continue pushing in the straight edges of the graphic on all four sides.

Accessories (sold separately): Wall Mounts

Recommended qty of wall mounts per frame width. Qtys listed below include wall mounts for top and bottom of the frame.

2ft - Qty 4

3ft - Qty 4

4ft - Qty 4

5ft - Qty 4

6ft - Qty 6

7ft - Qty 6

8ft - Qty 8

9ft - Qty 8

10ft - Qty 10

Package Includes

(1) 4-Sided Frame
(1) Custom Single-Sided Graphic (SEG hem)
(4) VAIL Triangle Corner Connectors, (16) Socket Screws, (1) 3 mm Allen Wrench
(3) VAIL Split Connectors (1 pre-installed on 1 VAIL-40C), (1) Torx Key
(2) VAIL Key Locks (pre-installed), (1) 4mm Allen Wrench
(2) VAIL-40C Support Extrusions
